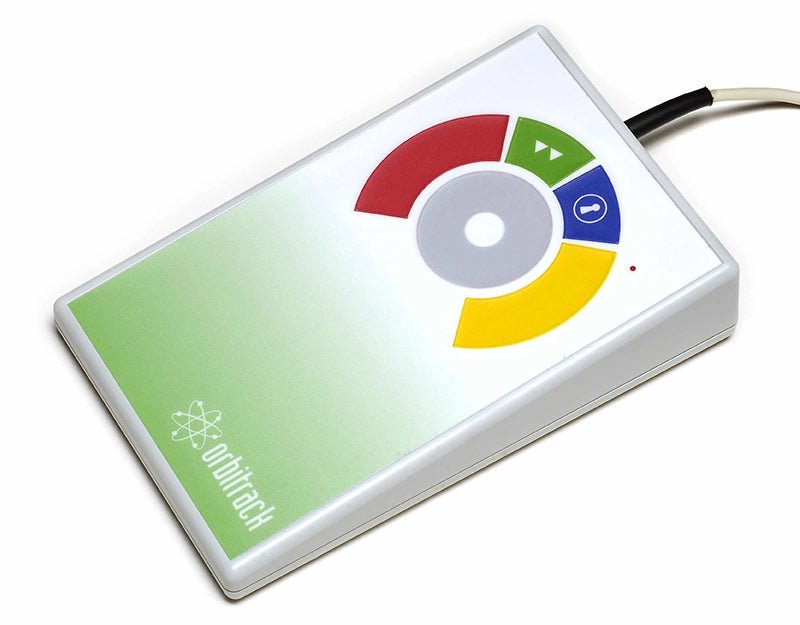

Orbitrack Assistive Trackpad – Adaptive Mouse Alternative

The Orbitrack Assistive Trackpad is a soft-touch alternative to a conventional computer mouse, trackball or joystick. Designed for users with limited hand movement, reduced strength or motor skill difficulties, it controls both the direction and speed of the cursor without requiring gripping, pushing, rolling or repeated movement of the hand and wrist.

A light touch on the large 50mm control ring moves the cursor in the chosen direction. The user does not need to drag a finger across a touchpad: maintaining contact continues the movement, while lifting the finger or returning it to the central white resting point stops the cursor. Four speed settings and SmartTrack technology help balance accurate targeting with efficient movement around the screen.

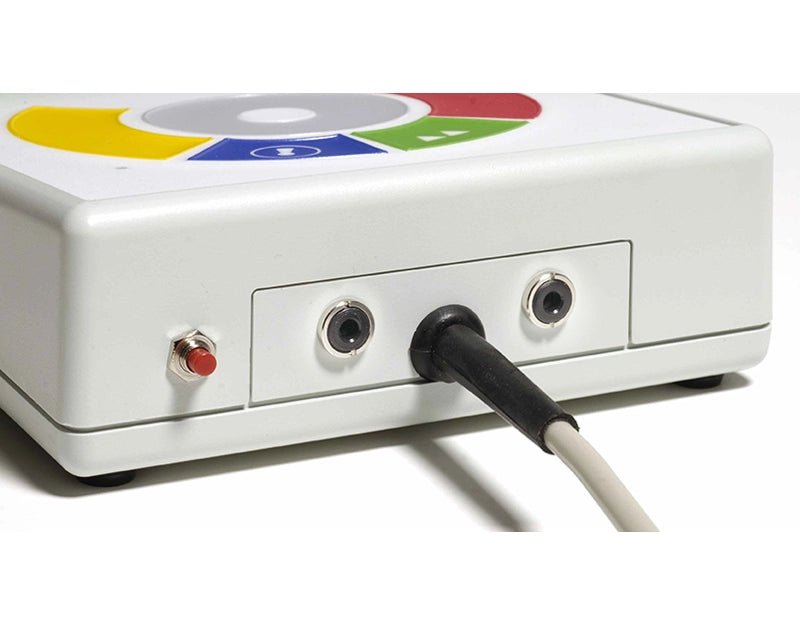

Soft-touch buttons provide left click, right click, double-click and drag lock functions, reducing the need to perform difficult repeated or sustained movements. Two 3.5mm sockets also allow the left- and right-click functions to be operated using compatible external switches.

The symmetrical, sloping design can be used with either hand and provides a generous palm rest for additional comfort. With no moving mechanical parts and no separate driver software required, the Orbitrack provides a reliable and adaptable way to access computers and compatible tablets at home, in education or at work.

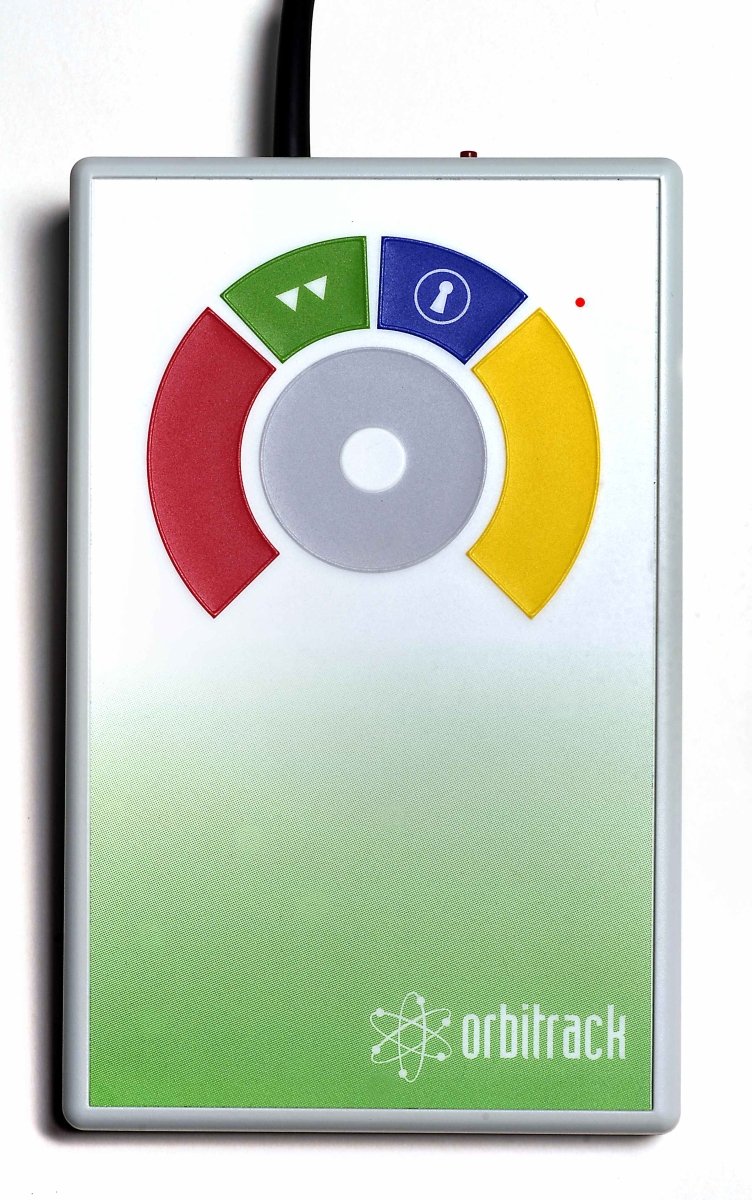

How the Orbitrack Works

• The central white dot provides a resting point and does not move the cursor
• Touching the grey ring moves the cursor in the direction of the finger
• Maintaining contact continues the movement and gradually increases the cursor speed
• Moving the finger around the ring changes the direction of travel
• Lifting the finger or returning it to the central dot stops the cursor
• Four speed settings allow the initial cursor speed to be adjusted
• SmartTrack can adapt cursor acceleration according to the user’s recent movements

Key Features

• Controls cursor direction and speed with a single soft touch
• Requires no gripping and minimal finger, hand or wrist movement
• Large 50mm touch-sensitive control ring for easier access and targeting
• Stationary central finger rest for pausing cursor movement
• Four adjustable cursor-speed settings
• Optional SmartTrack cursor acceleration
• Dedicated left-click and right-click buttons
• Dedicated double-click button performs the complete action automatically
• Drag lock holds an item without requiring continuous pressure
• Two 3.5mm sockets for compatible external switches
• Built-in left- and right-click buttons can be disabled when external switches are used
• Soft-touch, colour-coded buttons for easier identification
• Symmetrical design for right- or left-handed use
• Can be configured for use in four different orientations
• Sloping case and large palm rest support a comfortable hand position
• Audible feedback can be switched on or off
• No moving mechanical parts that can wear during normal use
• Sealed design helps protect against the ingress of fluids and contaminants
• Driver-free plug-and-play installation

SEN and Access Benefits

• Provides an alternative for users unable to grip or move a standard mouse
• Requires less strength and physical movement than many mice, trackballs and joysticks
• Eliminates the repeated finger movement needed to move across a conventional touchpad
• Allows the hand to remain supported while the cursor is controlled with a light touch
• Dedicated double-click and drag lock buttons simplify more difficult mouse actions
• Adjustable speed and SmartTrack options help tailor cursor movement to the individual
• External switch access provides an alternative to the built-in click buttons
• Flexible orientation can accommodate different seating, positioning and access needs
• May support more independent access to learning, communication, work and leisure activities

Product Details

• Product type: Wired assistive trackpad and adaptive mouse alternative
• Cursor control: 50mm touch-sensitive directional ring
• Cursor speed: Four selectable settings
• Adaptive speed: Optional SmartTrack cursor acceleration
• Mouse functions: Left click, right click, double-click and drag lock
• External switch sockets: 2 x 3.5mm sockets for left and right click
• Connection: USB; PS/2 operation requires a suitable adaptor
• Computer compatibility: Compatible USB mouse-enabled computers, including PCs and Macs
• Tablet compatibility: Suitable for compatible tablets that support USB mouse input when used with the appropriate adaptor
• Installation: Plug and play; no separate driver software required
• Handed use: Suitable for right- or left-handed operation
• External switches and tablet adaptors: Available separately

Please note: Compatible external switches and any adaptor required for connection to a tablet are not included. The Orbitrack is sealed against everyday fluid and contaminant ingress but must not be immersed in liquid. Device compatibility should be checked before purchase.
