SimplyWorks SEND and SEND-6 Wireless Switch Interfaces

The SimplyWorks SEND and SEND-6 Wireless Switch Interfaces turn compatible wired switches into wireless controls for the SimplyWorks system. They allow specialist switches such as foot, pillow, squeeze and sip-and-puff switches to be positioned where they are most accessible, without a cable running between the user and the receiving device.

A wired switch connects to one of the 3.5mm input sockets and the SEND interface is then paired with a compatible SimplyWorks receiver. Depending on the receiver selected, the switch can be used for computer access, switch activities, communication, environmental control or operating compatible switch-adapted equipment.

Two models are available. SimplyWorks SEND connects one wired switch, while SimplyWorks SEND-6 connects up to six wired switches through one transmitter. SEND-6 is particularly useful for wheelchair-mounted switch arrays and other multi-switch access arrangements because only one pairing operation is required.

When used for computer access, the function of each switch can be selected using the integrated display and keypad. SEND-6 can also turn a six-switch arrangement into a mouse emulator, using four switches for directional cursor movement and the remaining two for left and right click.

Both models provide a wireless operating range of up to 10 metres and are powered by two AAA batteries. Automatic power-saving removes the need for an everyday on/off switch, helping the batteries provide many months of typical use.

Key Features

• Turns compatible wired switches into wireless SimplyWorks controls
• Compatible with switches using a standard 3.5mm jack plug
• Suitable for foot, pillow, squeeze, sip-and-puff and other specialist switches
• Works with compatible SimplyWorks receivers
• Supports computer access, switch activities and environmental control when paired with the appropriate receiver
• Integrated LED display and keypad for selecting switch functions
• Choice of mouse, keyboard, gamepad and switch functions for compatible computer-access setups
• Wireless operating range of up to 10 metres
• Automatic power-saving mode following inactivity
• No everyday on/off switch required
• Powered by 2 x AAA batteries
• Designed for long battery life

Choose the Right Model

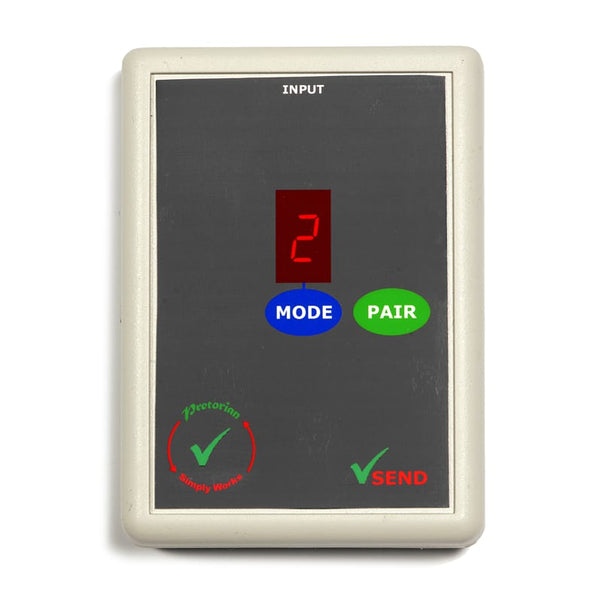

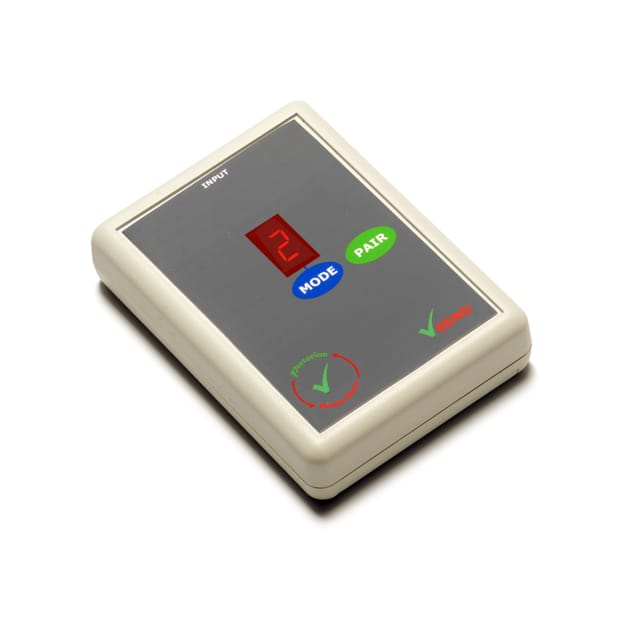

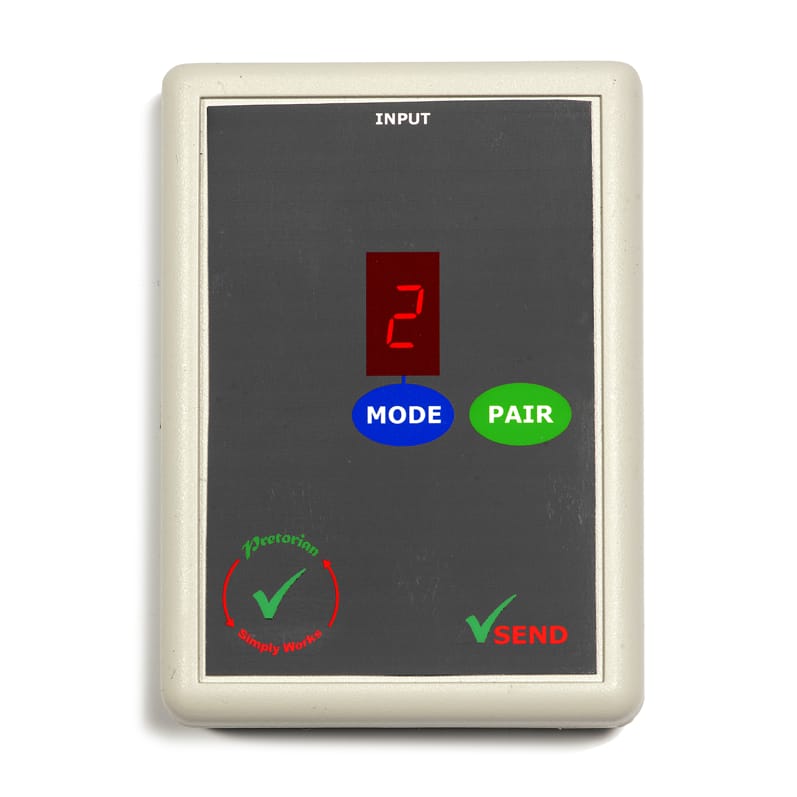

SimplyWorks SEND

• Single-channel wireless transmitter
• Connects one compatible wired switch to the SimplyWorks system
• Single 3.5mm switch input
• Ideal when one specialist switch needs to be used wirelessly
• Provides functions equivalent to a SimplyWorks Switch 125 while allowing a separately selected switch to be used

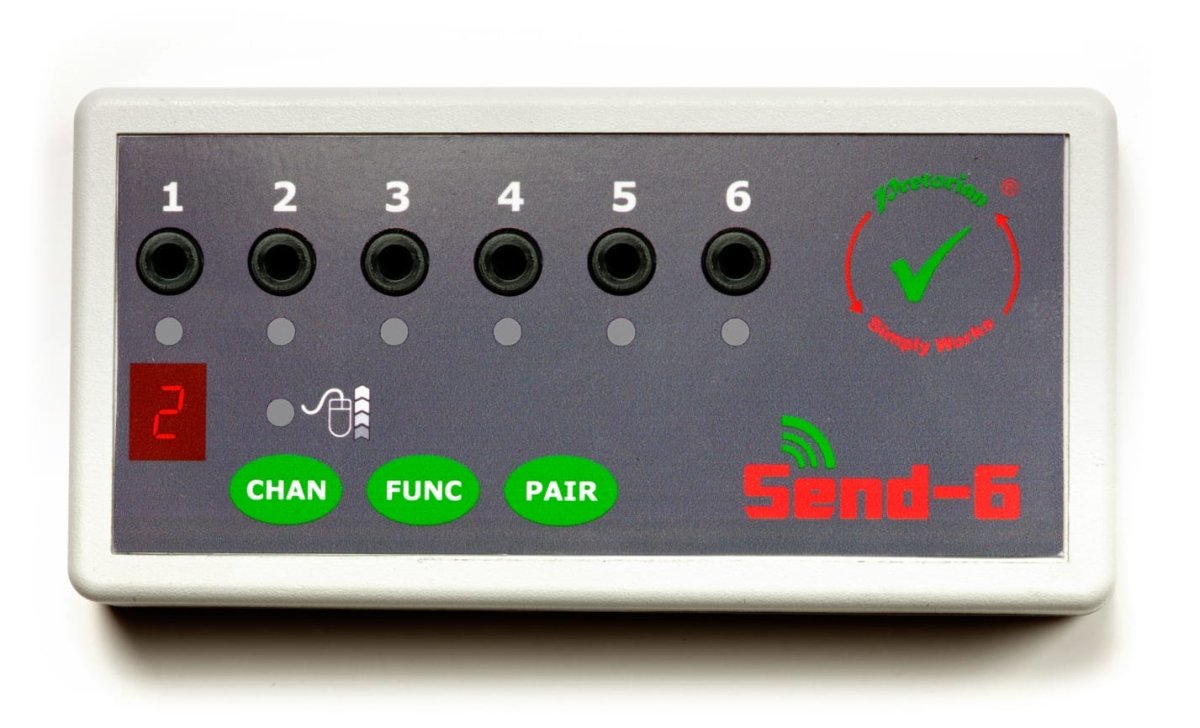

SimplyWorks SEND-6

• Six-channel wireless transmitter
• Connects up to six compatible wired switches
• Six 3.5mm switch inputs
• Only one pairing operation is required for the complete switch array
• Each switch function can be configured individually for computer access
• Suitable for wheelchair-mounted and other fixed multi-switch arrangements
• Includes a six-switch mouse emulator function
• Four switches can control cursor movement: up, down, left and right
• Two switches provide left-click and right-click functions
• Selectable cursor speed when used in mouse emulator mode
• Mouse emulator mode requires SimplyWorks Receive or Receive:2

SEN and Access Benefits

• Allows a switch to be selected according to the user’s particular movement and access needs
• Turns specialist wired switches into flexible wireless controls
• Removes the cable between the user’s switch arrangement and the receiving device
• Allows switches to be positioned on a desk, wheelchair tray, headrest or compatible mounting system
• Supports users with limited movement, strength, coordination or manual dexterity
• Can accommodate switches operated by the hand, foot, head, breath or another controlled movement
• May provide access for users who cannot operate a conventional mouse or keyboard
• Selectable functions allow the switch response to be matched to the activity
• SEND-6 keeps multi-switch arrangements together without pairing every switch separately
• SEND-6 can provide cursor and click control without requiring a conventional mouse
• May support greater independence in communication, learning, play and environmental control

How the SimplyWorks System Connects

1. One compatible wired switch is connected to SEND, or up to six switches are connected to SEND-6.
2. The SEND transmitter is paired with the appropriate SimplyWorks receiver.
3. For computer access, the required switch functions are selected using the display and keypad.
4. Activating a connected switch sends the selected command wirelessly to the receiver.

Product Details

• Product type: Wireless interface for wired accessibility switches
• Wireless system: SimplyWorks
• Compatible switch connection: 3.5mm jack plug
• SEND inputs: 1 x 3.5mm switch socket
• SEND-6 inputs: 6 x 3.5mm switch sockets
• Wireless range: Up to 10 metres
• Configuration: Integrated LED display and keypad
• Power supply: 2 x AAA batteries
• Power management: Automatic power-saving mode
• SEND manufacturer’s code: SWSND
• SEND-6 manufacturer’s code: SWSND6

Please note: Compatible wired switches and a suitable SimplyWorks receiver are required and are not included unless stated separately. SEND and SEND-6 are transmitters and do not connect directly to a computer, toy or appliance. The available functions depend on the SimplyWorks receiver and connected equipment. Mouse emulator mode on SEND-6 requires SimplyWorks Receive or Receive:2. Mains-powered appliances must only be controlled through an appropriate receiver such as SimplyWorks Energise. Always confirm that the chosen switch uses a compatible 3.5mm connection.
